Satco|Nuvo 65-832 Product Page

» 65-832

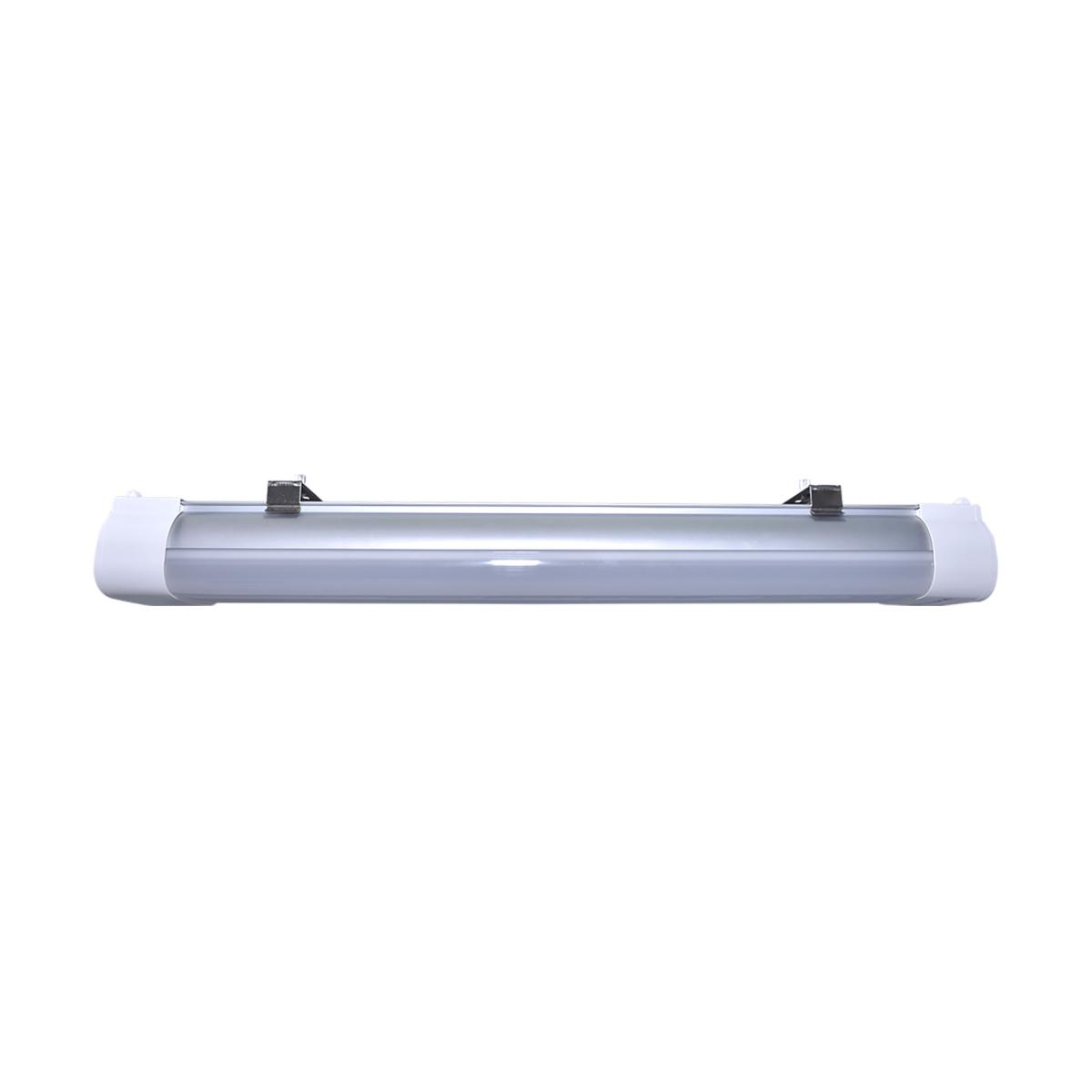

65-832 2' 20W LED TRI-PROOF W/SENSOR

65-832

2' 20W LED TRI-PROOF W/SENSOR

2 Foot; 20 Watt; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 and IK08 Rated


SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These products are offered with or without integrated microwave sensors. All of this makes for a versatile fixture family that will cover multiple applications. No matter how difficult the environment, there's a fixture to meet the need.
  • Maintenance free; no bulb to change
  • Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories
  • IP65 and IK08 Rated
  • CCT Selectable
  • 2KV built-in Surge Protection
  • Non-corrosive (PC) polycarbonate housing
  • Integrated Microwave Sensor
  • FCC and RoHS Compliant
  • 5 Year Warranty
Lights

65-832

2' 20W LED TRI-PROOF W/SENSOR

2 Foot; 20 Watt; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 and IK08 Rated



SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These products are offered with or without integrated microwave sensors. All of this makes for a versatile fixture family that will cover multiple applications. No matter how difficult the environment, there's a fixture to meet the need.
  • Maintenance free; no bulb to change
  • Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories
  • IP65 and IK08 Rated
  • CCT Selectable
  • 2KV built-in Surge Protection
  • Non-corrosive (PC) polycarbonate housing
  • Integrated Microwave Sensor
  • FCC and RoHS Compliant
  • 5 Year Warranty

Specifications

General
StatusActive
Substitute65-832R1
Fixture TypeVapor Tight
FinishWhite and Gray
Wattage20W
Lumen Output2065L-2249L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage20W
Lumen Output2065L-2249L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage120V-277V
Beam Angle115
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V; Integrated Sensor
Photocell or SensorIntegrated Microwave Sensor
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)2.87
IP RatingIP65
MaterialPlastic
Dimensions
Height (in.)3.11
Width (in.)3.98
Length (in.)23.62
Compliance
Safety ListingcETLus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPLTCJ3OQVJ3H
NSF ApprovedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeNo
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923650697
Each Quantity1
Each Length (in.)25.98
Each Width (in.)6.89
Each Height (in.)4.33
Each Weight (lb.)3.16
Each Cube (CuFt.)0.4485
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923650694
Case Quantity6
Case Length (in.)25.98
Case Width (in.)13.78
Case Height (in.)12.99
Case Weight (lb.)18.96
Case Cube (CuFt.)2.6912
No compatibility links for this item.
×
×
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
