Satco|Nuvo 65-821R1 Product Page

» 65-821 R1

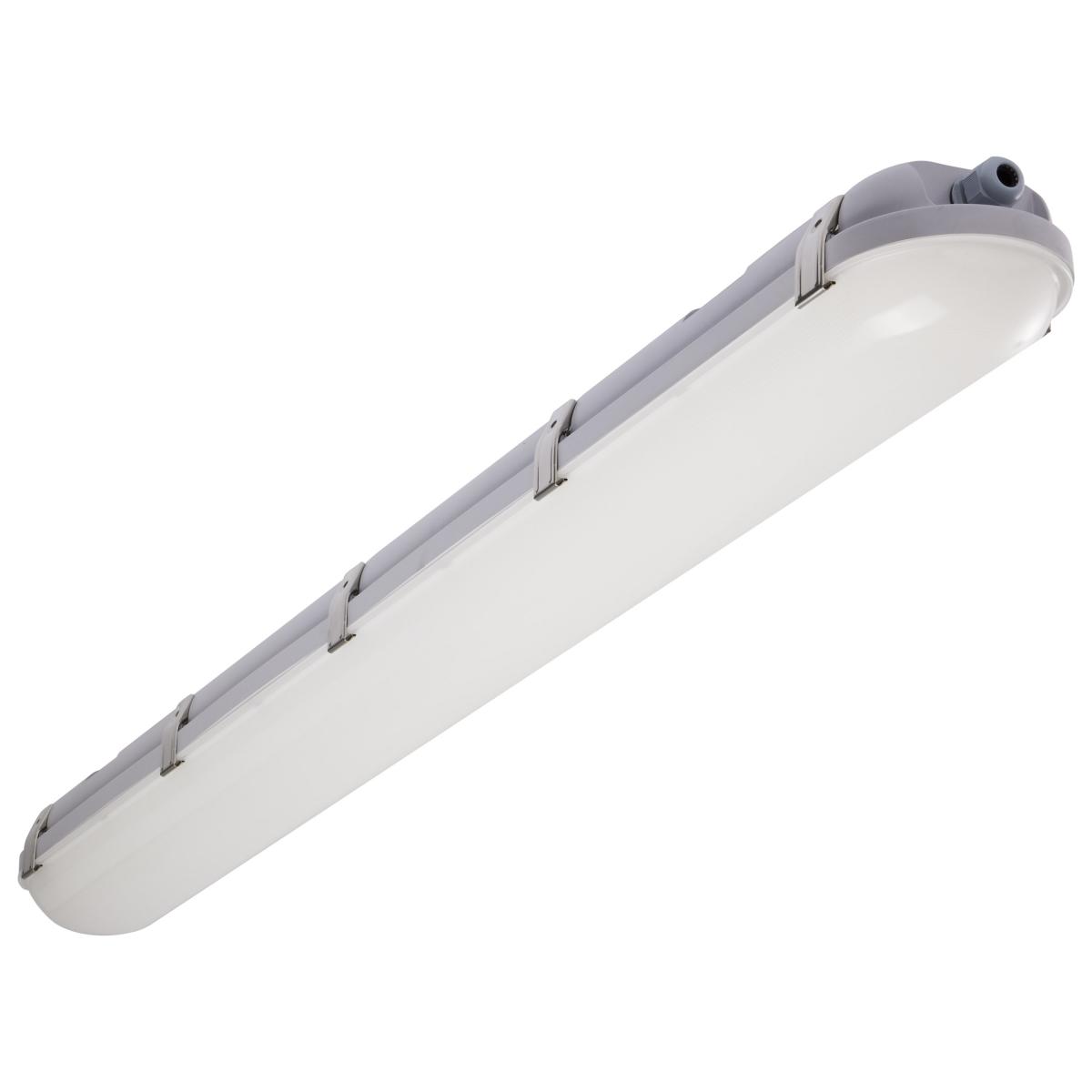

65-821R1 4' LINEAR VAPOR PROOF

65-821R1

4' LINEAR VAPOR PROOF

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V


SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These products are offered with or without integrated microwave sensors. All of this makes for a versatile fixture family that will cover multiple applications. No matter how difficult the environment, there's a fixture to meet the need.
  • 120-347 Voltage - FOR USE IN CANADA
  • Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
  • IP65 and IK08 Rated
  • CCT and Wattage Selectable
  • 2KV built-in Surge Protection
  • Non-corrosive (PC) polycarbonate housing
  • 0-10V Dimmable
  • 5 Year Warranty
  • Suspension kit (sold separately)
Lights

65-821R1

4' LINEAR VAPOR PROOF

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V



SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These products are offered with or without integrated microwave sensors. All of this makes for a versatile fixture family that will cover multiple applications. No matter how difficult the environment, there's a fixture to meet the need.
  • 120-347 Voltage - FOR USE IN CANADA
  • Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
  • IP65 and IK08 Rated
  • CCT and Wattage Selectable
  • 2KV built-in Surge Protection
  • Non-corrosive (PC) polycarbonate housing
  • 0-10V Dimmable
  • 5 Year Warranty
  • Suspension kit (sold separately)

Specifications

General
StatusActive
Fixture TypeVapor Tight
FinishGray
Wattage40W/50W/60W
Lumen Output5360L-7991L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage40W/50W/60W
Lumen Output5360L-7991L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage120V-347V
Beam Angle120
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)5.07
IP RatingIP65
MaterialPlastic
Dimensions
Height (in.)3.46
Width (in.)4.92
Length (in.)47.24
Compliance
Safety ListingcETLus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-8CX59R; S-QRI8BK
NSF ApprovedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeNo
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923650963
Each Quantity1
Each Length (in.)49.61
Each Width (in.)5.71
Each Height (in.)3.94
Each Weight (lb.)6.17
Each Cube (CuFt.)0.6459
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923650960
Case Quantity6
Case Length (in.)49.61
Case Width (in.)11.42
Case Height (in.)11.81
Case Weight (lb.)37.04
Case Cube (CuFt.)3.8721
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer LeGrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
