| Status | Transitioning |
| Substitute | 65-703R1 |

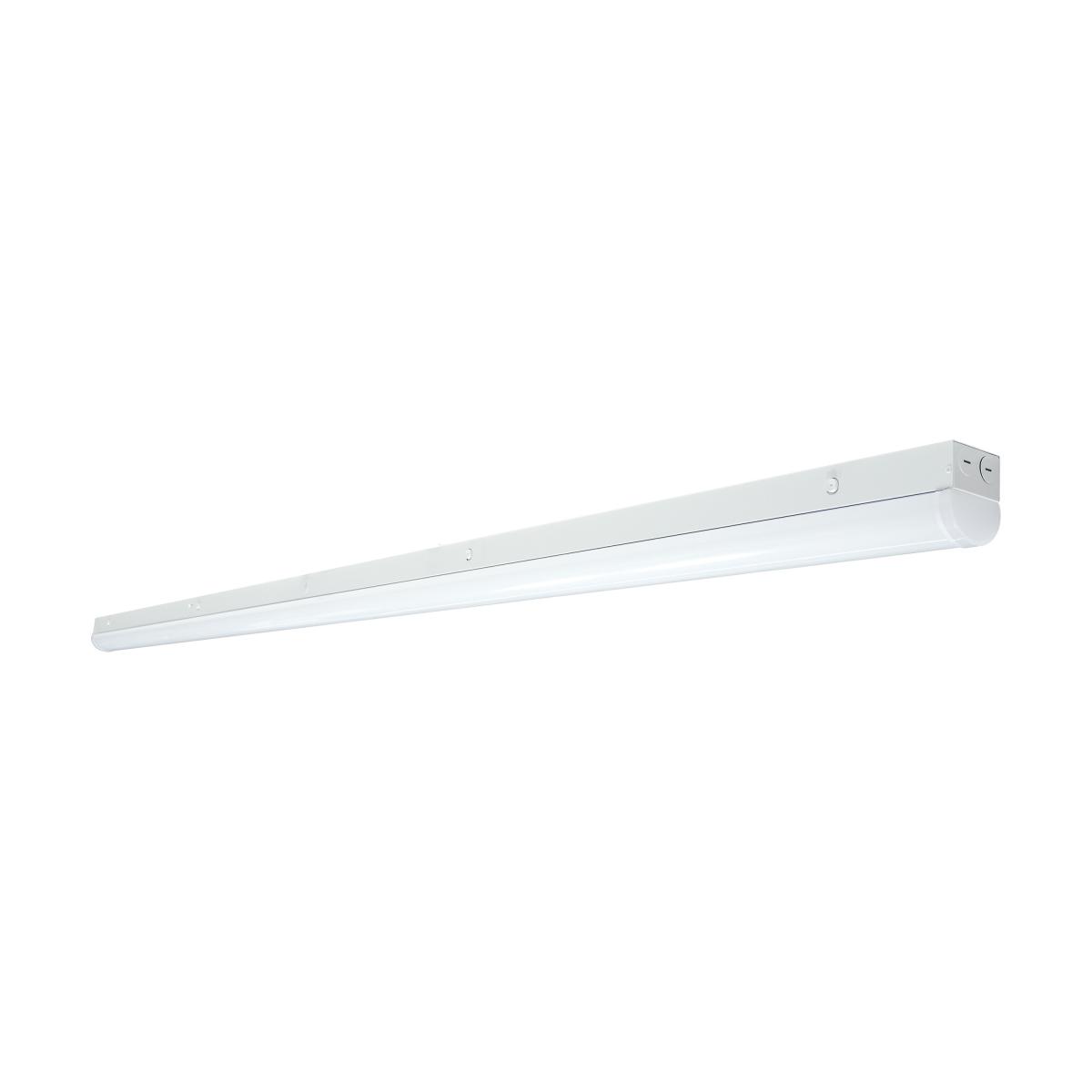

| Fixture Type | Strip Light |
| Finish | White |
| Wattage | 82W |
| Lumen Output | 10400L-10800L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
| IOT Enabled | No |
| Integrated Camera | No |
| Technology | LED |
| Wattage | 82W |
| Lumen Output | 10400L-10800L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Neutral White to Daylight |
| CRI | 80+ |
| Voltage | 120V-347V |
| Beam Angle | 120 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +60C (+140F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
| Photocell or Sensor | Optional Add-On |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 3KV |
| Weight (lb.) | 6.84 |
| IP Rating | IP20 |
| Material | Steel |
| Height (in.) | 3.27 |
| Width (in.) | 2.95 |
| Length (in.) | 96 |
| Back Plate or Canopy Diameter (in.) | 4.75 |
| Safety Listing | cULus - Listed |
| Location Rating | Damp |
| UL Application | Ceiling / Wall |
| ENERGY STAR | No |
| DLC Approved | Yes |
| DLC ID | PLRLXXEMUEOR; PLTRVDFB3IUR |
| B.U.G. Rating | B3-U4-G3 |
| NSF Approved | No |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Fixture |
| Additional Information | Other DLC Listings: PLTRVDFB3IUR, Standard, Direct Linear Ambient Luminaires. |
| Specification Note | Add on sensors, 86-202 and 86-211, are only rated for 120-277 Volt |
| Installation Notes | Maximum connected units are 7. If dimming, the dimmer max load will dictate how many units can be on the run/control. |
| Warranty | 5-Years |
| Each UPC | 045923667039 |
| Each Quantity | 1 |
| Each Length (in.) | 98.03 |
| Each Width (in.) | 5.20 |
| Each Height (in.) | 5.32 |
| Each Weight (lb.) | 7.20 |
| Each Cube (CuFt.) | 1.5694 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923667036 |
| Case Quantity | 4 |
| Case Length (in.) | 98.62 |
| Case Width (in.) | 11.02 |
| Case Height (in.) | 11.81 |
| Case Weight (lb.) | 32.50 |
| Case Cube (CuFt.) | 7.4277 |
