» 65-269

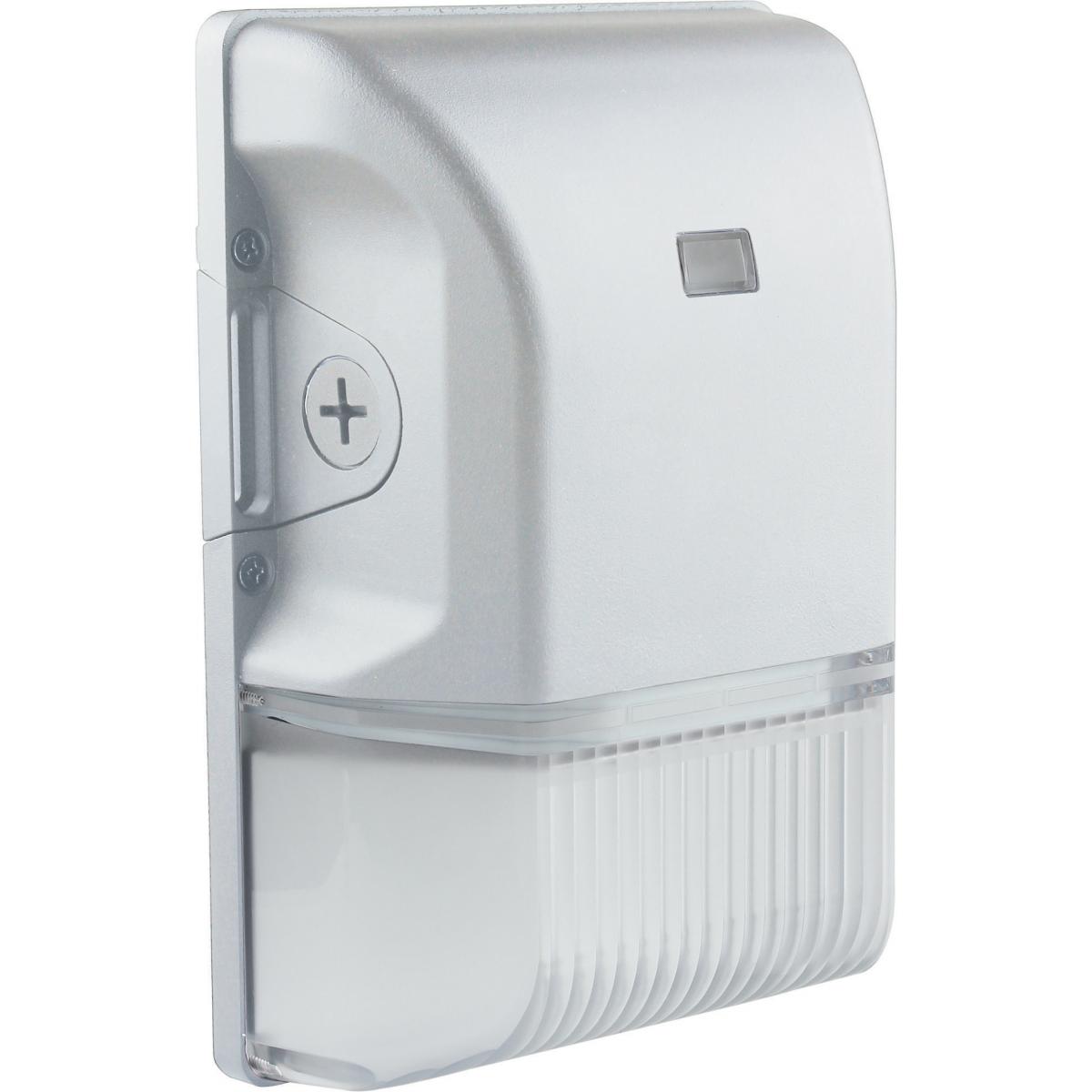

65-269 LED SMALL WALL PACK W/PHOTOCEL

65-269

LED SMALL WALL PACK W/PHOTOCEL

LED Small Wall PacK - 20W - 4000K - White Finish - 100-277V


The NUVO LED 20-watt Small Wall pack offers cool white light with a 100 degree beam spread in a white finish. This premium fixture features a photocell sensor and is suitable for use on commercial buildings for exterior lighting. Maintenance free and long-lasting, this wall pack delivers 50,000 hours of superior illumination.
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • IP65, Wet rated for outdoor use
  • Built-in Photocell
  • UV Stabilized Powder Coated Finish
Lights

65-269

LED SMALL WALL PACK W/PHOTOCEL

LED Small Wall PacK - 20W - 4000K - White Finish - 100-277V

The NUVO LED 20-watt Small Wall pack offers cool white light with a 100 degree beam spread in a white finish. This premium fixture features a photocell sensor and is suitable for use on commercial buildings for exterior lighting. Maintenance free and long-lasting, this wall pack delivers 50,000 hours of superior illumination.
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • IP65, Wet rated for outdoor use
  • Built-in Photocell
  • UV Stabilized Powder Coated Finish

Specifications

General
StatusActive
Fixture TypeWall Pack
FinishWhite
Wattage20W
Lumen Output2669L
CCT (Kelvin)4000K
TemperatureCool White
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage20W
Lumen Output2669L
CCT (Kelvin)4000K
Color TemperatureCool White
CRI80+
Voltage100V-277V
Beam Angle100
Rated Hours50000
Operating Temperature-20C (-4F) to +45C (+113F)
DimmableNon-Dimmable
Photocell or SensorHas Photocell
Lens MaterialPolycarbonate (PC)
Weight (lb.)1.98
IP RatingIP65
MaterialCast Aluminum
Dimensions
Height (in.)8.59
Width (in.)5.81
Extension (in.)3.09
Compliance
Safety ListingcETLus - Listed
Location RatingWet
UL ApplicationWall
Energy StarNo
DLC ApprovedNo
ADA CompliantYes
CA T20 / T24 RationaleCalifornia T24 2016 & 2019 JA8 Compliant; T20 Exempt - Fixtures Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusCalifornia T24 Compliant
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923680755
Each Quantity1
Each Length (in.)6.10
Each Width (in.)3.50
Each Height (in.)8.90
Each Weight (lb.)2.03
Each Cube (CuFt.)0.1100
Pack TypeColor Box
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923680752
Case Quantity10
Case Length (in.)18.10
Case Width (in.)12.80
Case Height (in.)9.60
Case Weight (lb.)22.05
Case Cube (CuFt.)1.2871
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
